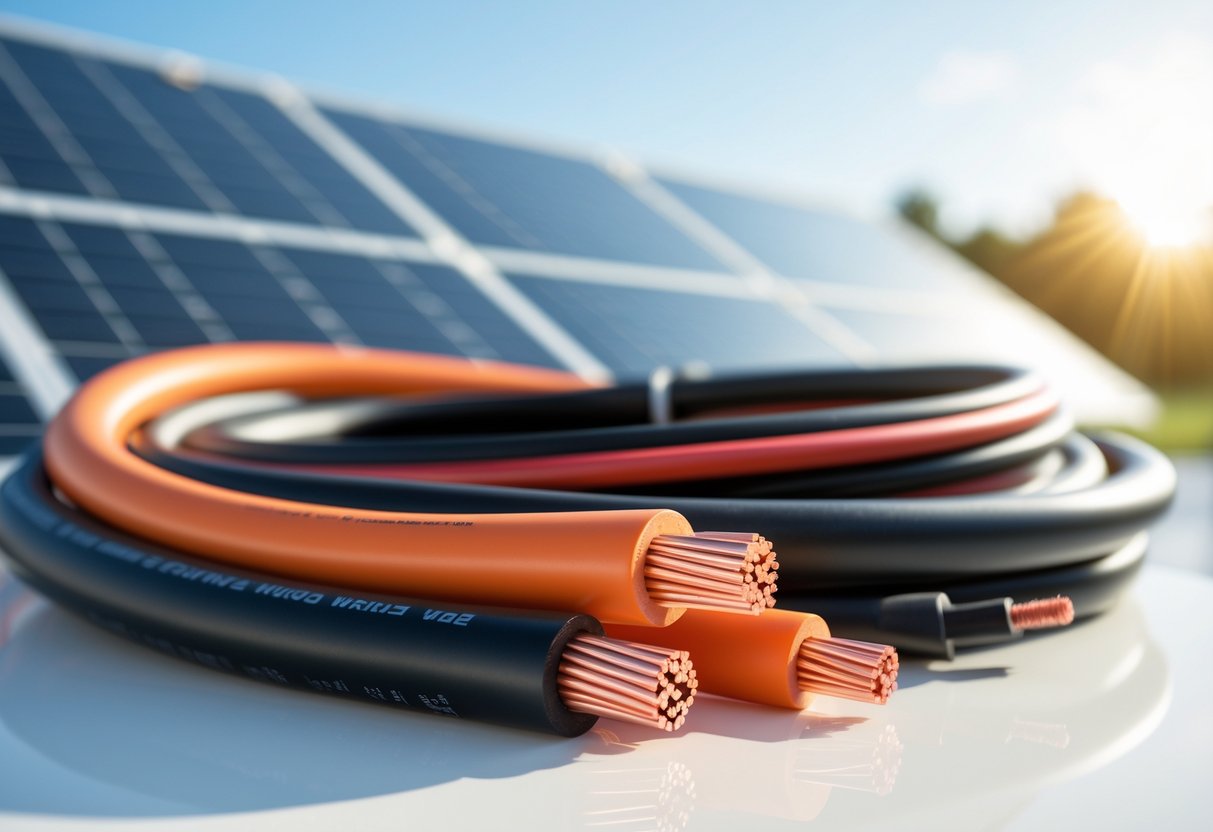

When you’re planning a solar project, picking the right wire and cable material is a big deal—not just for safety, but also for squeezing out every bit of efficiency. Copper is widely recognized as the best material for solar wire and cable thanks to its top-notch electrical conductivity and reliability. It just outperforms options like aluminum in most scenarios. Using the right wire material isn’t just about following code—it’s about avoiding headaches like voltage drops and surprise system issues.
A lot of installers also turn to marine-grade tinned copper cables for a boost in corrosion resistance, especially if the setup is in a rough or salty environment. So, why does copper get so much love? Let’s dig in a bit and see what really makes it stand out for solar work.
Essential Criteria for Selecting The Best Material for Solar Wire and Cable
Picking your solar wire material isn’t just a box to check—it shapes how efficient, safe, and durable your system will be. Every detail, from how well it carries electricity to how it handles weather, matters if you want your installation to last and perform.
Electrical Conductivity and Resistance
Electrical conductivity should probably top your list when you’re weighing conductor materials. Copper shines here, delivering high conductivity so the current flows with barely any resistance. This means less voltage drop, which is a big deal if you want to keep your power output steady.
Using copper conductors helps keep energy loss in check—especially important for those long cable runs that are so common in solar setups. Aluminum might be lighter and cheaper, but it’s got higher resistance and that can really eat into your efficiency. Lower resistance also means cables can safely carry more current, which comes in handy whether you’re dealing with DC or AC circuits.
The American Wire Gauge (AWG) system is your friend when it comes to picking wire size. Getting the right AWG is essential if you want to balance resistance and performance. At the end of the day, materials with excellent conductivity—like copper—just make the most sense for solar cables.
Heat and Environmental Resistance
Solar wires have it rough: high temps, UV rays, moisture, and sometimes even chemicals or salt. If your cables can’t handle these, you’re probably looking at early failures and headaches down the road.
Heat resistance is a must. Wires can get pretty toasty, especially under heavy loads. That’s why insulation like cross-linked polyethylene (XLPE) or ethylene propylene rubber (EPR) gets used—they handle the heat and help your system stay safe. These materials also keep the conductor itself from getting fried.
UV protection? Absolutely necessary, especially if your setup lives outside. And don’t forget about moisture or chemical resistance—these traits help your cables last longer. Honestly, if your wires can’t stand up to the elements, your whole solar setup is at risk.
Wire Gauge, Size, and Current Carrying Capacity
Getting the wire gauge and size right isn’t just a technicality—it makes a real difference. The AWG standard rates wires by diameter, and the lower the number, the thicker the wire and the more current it can handle.
For solar systems, your wire needs to match the current load. Go too small and you’ll get resistance, overheating, and maybe even fire risks. Go bigger and, well, it costs more, but you cut down voltage drop a lot.
It’s worth taking the time to figure out your load and distance to pick the right gauge. This way, your system stays safe and efficient, and you avoid nasty surprises like overheating or power loss.
Comparing Common Materials for Solar Wire and Cable
Wire material isn’t just a technical detail—it’s core to your solar system’s efficiency and how long it’ll last. Knowing the ins and outs of copper, aluminum, different wire designs, and insulation options helps you pick the cable that actually fits your project.
Copper Wire vs. Aluminum Wire
Copper wire is the go-to for solar panel wiring, and honestly, it’s not hard to see why. Its high electrical conductivity means it can carry more current per foot than aluminum, so you get better performance and less voltage drop.
Aluminum wire is lighter and saves you some cash, but it just doesn’t conduct as well. If you want aluminum to do the same job as copper, you need a chunkier wire. Still, for really big solar projects where weight and budget are tight, aluminum can be tempting.
When you’re picking between copper and aluminum, it really comes down to safety, current needs, and what you can spend. Every project is different, so you’ve got to weigh those factors carefully.
| Feature | Copper Wire | Aluminum Wire |
|---|---|---|
| Conductivity | High | Moderate |
| Weight | Heavier | Lighter |
| Cost | Higher | Lower |
| Corrosion Risk | Lower | Higher |
PV Wire and DC Solar Cables
PV wire (photovoltaic wire) is made just for solar panels. It’s built to handle direct current and high voltages, with thick XLPE insulation that shrugs off UV rays, heat, and bad weather.
You might see standard DC cables like THHN, THWN, or RHW-2 used sometimes, but they usually don’t have the same weather resistance or flexibility as PV wire. PV cable is usually single-conductor and really shines for outdoor or rooftop jobs.
Using certified PV wire means you’re up to code and your system’s lifespan gets a nice boost. For wiring between panels or from panels to inverters, PV cable is usually the safe bet.
Stranded Wire versus Solid Wire
Stranded wire is made up of lots of thin strands twisted together, which makes it way more flexible than a single solid wire of the same size. In solar installs—especially where cables need to bend or flex, like on trackers or tricky roofs—stranded wire is the way to go.
Solid wire is stiff and just doesn’t play nice in tight or curvy spaces. It’s better for fixed, indoor stuff like electrical panels or conduit runs inside buildings.
For most solar setups, especially anything outside or where movement is expected, stranded wire is the standard. It’s just easier to work with and holds up better to the real world.
| Type | Flexibility | Use Case |
|---|---|---|
| Stranded | High | Outdoor, moving parts |
| Solid | Low | Indoor, fixed installations |
Insulation and Sheathing Options
Picking the right insulation and sheath really matters when it comes to protecting solar wires from things like UV rays, moisture, heat, and just general wear and tear. PV wire typically uses cross-linked polyethylene (XLPE—sometimes you’ll see it as XPLE) insulation, which holds up impressively well outdoors.
You’ll also run into other insulation types: THW, THHN, THWN, and RHW-2. They all have their quirks—some are better with heat, others with moisture, and a few are just tougher overall. Take RHW-2, for example; it’s pretty solid when you need extra moisture and temperature resistance. Then there’s THHN, which is kind of the go-to for dry spots because it’s so adaptable.
When it comes to sheathing, you want something that can handle sunlight—so UV resistance is a must. It should also be tough enough for whatever the environment throws at it. Electrical codes are pretty clear: you’ve got to match the wire insulation and sheathing to where you’re installing them if you want things to stay safe and last.
