In solar photovoltaic systems, managing multiple strings of solar panels definitely calls for specialized gear to keep things running smoothly and safely. A DC combiner box collects current from multiple solar panel strings and merges them into a single output headed for the inverter, all while providing critical protection against overcurrent, faults, and even lightning. Basically, it’s the main junction that keeps wiring tidy, improves safety, and lets us keep tabs on how each string is performing.
There’s a lot of confusion out there about what these boxes actually do—especially when it comes to their protective features and monitoring options. If you really get how DC combiner boxes function, you’ll be able to design and operate systems that stay online longer and bounce back fast from issues.
Let’s dig into the nuts and bolts of these critical components, focusing on what actually matters for residential, commercial, and utility-scale solar projects.
Understanding DC Combiner Boxes
DC combiner boxes gather electrical outputs from several solar panel strings into one spot, while providing overcurrent protection, surge protection, and system isolation before the DC power heads to the inverter.
What Is a DC Combiner Box?

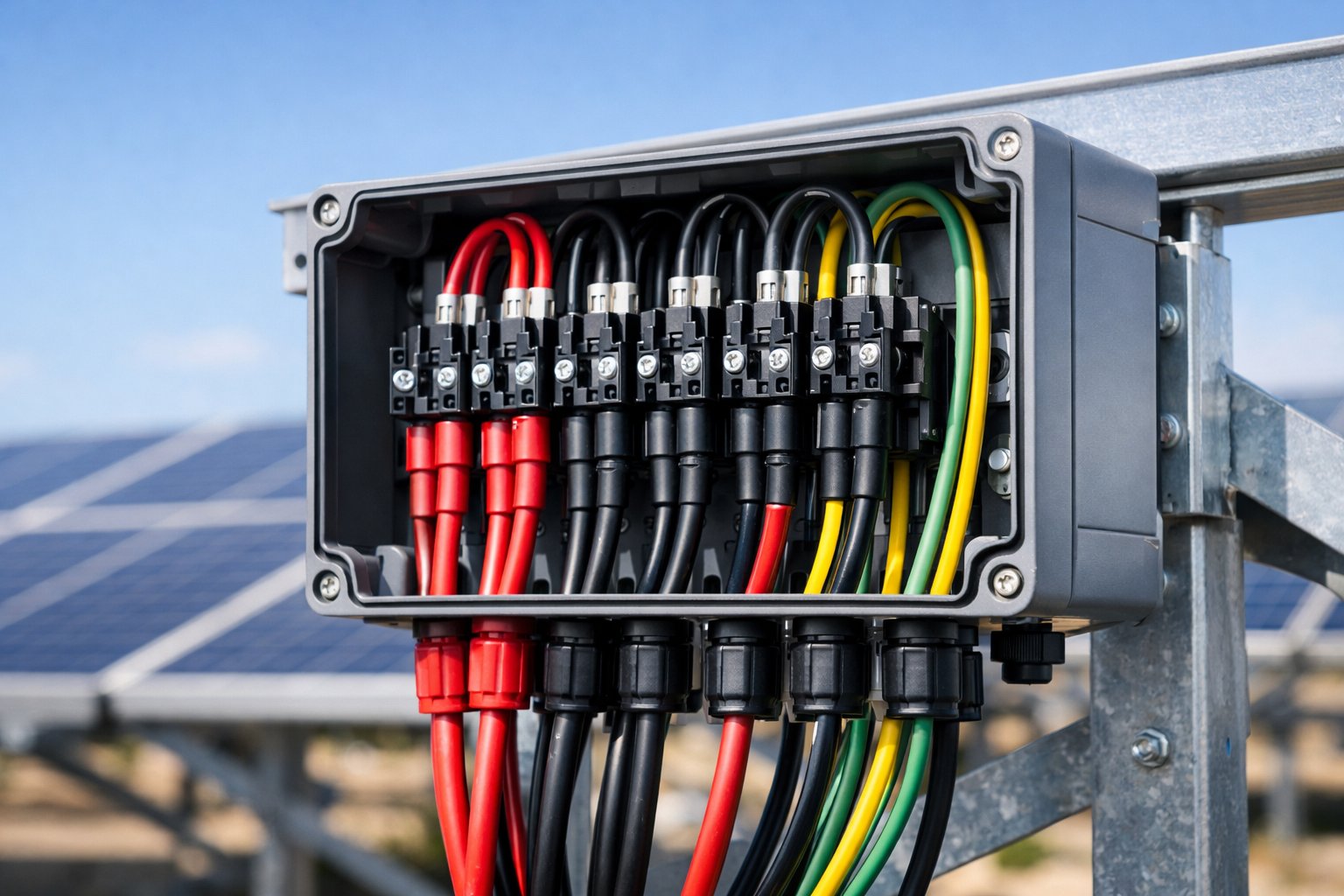

A DC combiner box is basically an enclosure—think of it as a weatherproof electrical panel—that merges the DC output from multiple strings into one (sometimes two) main feeds. You’ll find these boxes mounted between the solar array and the inverter on just about any job site.
Inside, you’ll see a handful of key components: DC circuit breakers or disconnects for isolating strings during maintenance, fuses to keep reverse current from frying your panels, and surge protection devices (SPDs) to shunt away lightning or voltage spikes. The busbar is what actually carries that combined current out to the output terminals.
These boxes are built tough—usually from weatherproof materials rated IP65 or IP67 so they can handle the elements. You’ll see everything from 2-input to 12-input models, depending on how big the system is. Voltage ratings are usually 600V, 1000V, or 1500V DC.
How DC Combiner Boxes Work in Solar Systems
When you wire panels in series, you get a string that puts out high-voltage DC. Each string lands on its own input in the combiner box. From there, the box pulls all the individual string outputs together onto a common busbar, which then runs to the inverter.
Protection happens at a few levels. Each input circuit gets overcurrent protection—usually sized at 125% of the string’s short-circuit current. Fuses or breakers will trip if there’s a fault, isolating that string fast. SPDs are there to catch surges before they can do any damage.
The total output current from the combiner is just the sum of all your string currents. For example, eight strings at 12A each means you’re pushing 96A out of the box. Always pick busbars and output cables rated at least 20% higher than your max calculated output—trust me, you don’t want to cut it close.
Some boxes even come with built-in monitoring. They’ll track voltage and current for each string, flag blown fuses, and talk to your monitoring platform via RS485 or Modbus.
String Combiner Box vs. DC Combiner Box
You’ll hear “string combiner box” and “DC combiner box” tossed around—don’t let it trip you up. They’re the same thing. Both refer to the enclosure that brings together multiple solar string outputs on the DC side.
The term “string combiner” highlights the input side, while “DC combiner” just reminds you it’s all about direct current. Most folks in the field use these names interchangeably.
If you’re working with microinverters or AC modules, you might run into AC combiner boxes. Those are a different animal—they combine AC outputs after panel-level conversion, work at lower voltages (like 240V or 480V AC), and need a totally different protection setup.
Key Advantages of Using Combiner Boxes
Combiner boxes make installs a heck of a lot easier. Instead of running a separate wire from every string to the inverter, you can just pull one main cable for the whole array—way less copper and conduit.
Safety is a big win too. Techs can isolate individual strings for troubleshooting or repairs without shutting down the whole system. Built-in fuses and breakers protect gear from faults, and those weather-sealed enclosures keep out rain, dust, and critters.
If you spec boxes with monitoring, you’ll have eyes on each string’s performance. You’ll spot underperforming circuits, catch wiring mistakes, and plan maintenance before things go sideways.
There’s also a cost angle—less wiring, less labor, and fewer protection devices to buy. Centralizing protection in a combiner box is almost always cheaper than sticking fuses and disconnects on every string out in the field.
Critical Features and Protection Mechanisms
A solid DC combiner box brings three things to the table: overcurrent protection to prevent electrical fires and cable meltdowns, monitoring so you can actually see what’s happening, and a weatherproof enclosure tough enough for the outdoors. Each one of these matters for safety, reliability, and keeping your system humming along for years.
Overcurrent Protection and Safety Features
Every DC combiner box needs overcurrent protection—no exceptions. Most use DC fuses with breaking capacities in the 15kA to 20kA range, installed on each string input. If a string goes bad, those fuses will pop in a tenth of a second, stopping the problem before it spreads.
Circuit breakers are sometimes used instead of fuses, and they’re handy because you can reset them without swapping parts. It’s common to see both fuses and disconnects in the same box, so techs can safely work on the system without any live circuits.
SPDs are another must-have. Type 1 SPDs react in under 25 nanoseconds to zap lightning surges and voltage spikes straight to ground. We typically mount these between the string inputs and the main busbar.
Some boxes will also include anti-reverse or blocking diodes. These keep current from flowing backward when you’ve got strings mismatched from shading or soiling. It’s a simple way to avoid power loss or weird operational issues.
Monitoring System Integration
Modern DC combiner boxes can be pretty smart. With Hall-effect current sensors, you get ±1% accuracy on every string—way more precise than guessing with a clamp meter. These sensors send data over RS485 or wireless links to your monitoring system.
Here’s what we usually keep an eye on:
- String current (usually 10-20A per string)
- String voltage at each input
- Enclosure temperature
- Faults like ground faults or blown fuses
Temperature sensors will trigger alarms if things get too hot inside—usually if you hit 70-80°C. Some boxes also have insulation monitoring to catch ground leakage at 500kΩ or less, which is a good early warning that something’s degrading.
Remote monitoring is a game-changer, especially on big sites. You can spot faults and analyze data without rolling a truck, which saves a ton of time and money. The system logs everything, so you can look back at performance trends and plan maintenance before you end up with an outage.
Environmental Ratings and Enclosure Types
When we’re picking DC combiner boxes, the IP (Ingress Protection) rating really matters—it tells us how well the enclosure stands up to dust and water. For most rooftop jobs, an IP65 enclosure does the trick: it’s dust-tight and shrugs off water jets, which is usually all you need up there. If you’re expecting more aggressive spray (think pressure washers or gnarly storms), you’ll want to bump it up to IP66. Now, for ground-mounts or sites that might flood, IP68 is the gold standard. Those enclosures are sealed up tight and can handle being underwater for extended periods—definitely not overkill in flood zones.
Material choice? That’s all about where you’re installing. Here’s a quick rundown:
| Material | Best For | Key Advantage |
|---|---|---|
| Stainless steel | Coastal areas | Handles salt spray, won’t rust out |
| Aluminum alloy | Standard outdoor | Lightweight, resists corrosion—installer favorite |
| Powder-coated steel | Desert/UV exposure | Stands up to UV, easy on the budget |
If you see NEMA 4X on a spec sheet, you’re looking at something built for tough outdoor conditions—think IP66 plus solid corrosion resistance. At higher altitudes, we have to factor in temperature derating since the air’s thinner and components can run hotter. And for sites that swing from deep freeze to blazing heat, we make sure the enclosure gaskets are rated from -40°C up to +70°C. Otherwise, you’re just asking for trouble when the seasons change.
