Industrial environments are tough—no way around it. You need cable and connector solutions that can handle dust, vibration, moisture, wild temperature swings, and still deliver consistent power, data, and control signals. Whether you’re wiring up a production line or running cables out to a remote solar array, these components are the unsung heroes keeping everything humming along, connecting sensors, motors, and PLCs in places where generic connectors would give up fast.
Industrial connectors and cables are purpose-built for reliability and longevity, even when the environment is far from friendly. You’ve got to consider ingress protection (IP) ratings, current ratings, temperature tolerance, chemical resistance, and vibration—each application throws its own curveballs. The lineup ranges from compact M8 and M12 circular connectors for sensors, up to heavy-duty connectors that can move serious amperage, plus specialized Ethernet options for industrial networking.
Let’s dig into the main connector families and industrial cable types. We’ll look at what makes each tick, how they’re built, and what to watch for when you’re speccing out a new system—especially if you want to avoid headaches down the road.
Core Types and Components of Industrial Connectors and Cables

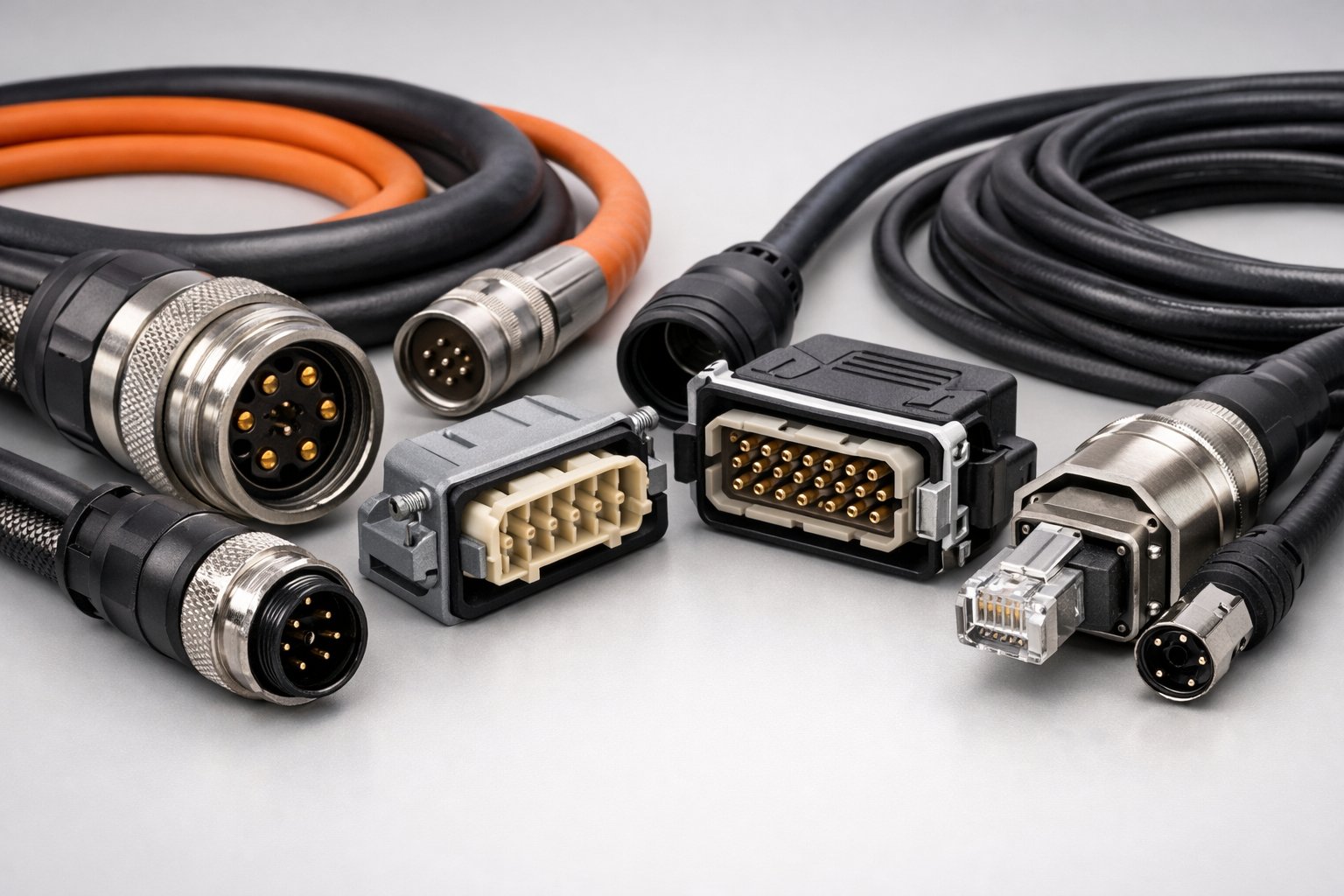

In the world of automation, connectors and cables aren’t all created equal. You’ll run into a few main groups: circular connectors (think M5 up to M58), cable assemblies that wrap everything up in a neat package, and the heavy-duty power connectors that handle the big loads.
Key Types of Industrial Connectors
There’s a handful of connector styles you’ll see over and over on job sites and in control panels. Circular connectors are the workhorses—M8 and M12 are everywhere for sensors and field devices. Each has its own coding system (A-coded for sensors, D-coded for Ethernet, T-coded for power, and so on) to keep you from accidentally making a costly mistake during install.
PCB connectors bring signals straight to a board—no fuss. For field wiring, you’ve got your classic wire connectors for quick terminations and splices.
Main Connector Categories You’ll Actually Use:
- Circular connectors: M5, M8, M12, M23, 7/8 inch—each with its own sweet spot
- Rectangular connectors: The go-to for heavy-duty, high-density connections
- Data connectors: Profibus, Ethernet/IP, fieldbus—if it talks, it’s here
- Photovoltaic connectors: Solar arrays and inverters live and die by these
- Energy storage connectors: Battery banks, BMS, and power distribution
When you’re choosing connectors, you’ll be looking at things like pin pitch, IP ratings (IP65 up to IP69K for washdown or outdoor gear), and how much force it takes to mate and unmate them (which matters if you’re doing this all day).
Cable Assemblies and Their Role
Cable assemblies are a real time-saver—prebuilt, tested, and ready to drop in. They combine connectors, cable, and usually some kind of protection (strain relief, grommets, or overmolds) so you’re not crimping or soldering in the field. We usually spec jacket materials based on what’s going to attack the cable—oils, UV, chemicals, whatever the site throws at it.
Inside the assembly, the cable itself is built for the job. If it’s going on a robot arm or drag chain, you want fine-stranded conductors and a tight bend radius. Get that wrong, and you’ll be chasing intermittent faults for months.
For power, we’re mostly using AWG sizes from 8 to 10, but for signals you’ll see much finer gauges and plenty of shielding to keep out EMI.
Heavy-Duty and Power Connectors Overview
When you’re moving serious current—think big motors, solar combiner boxes, battery racks—you need connectors that don’t flinch under load. These come with chunky metal housings, beefy strain relief, and contacts designed to keep resistance (and heat) down. L-coded M12s can handle up to 12A at 63V DC, but some of the specialized stuff is good for 40A+ in three-phase setups.
Specs you’ll want to check: voltage and current ratings, contact resistance, how many times you can plug and unplug before things get flaky, and what happens when it’s hot, cold, or full of dust. If you’re working in a nasty environment, don’t cheap out here.
Applications, Standards, and Industrial Considerations
Every application has its own quirks, and connectors/cables have to meet not just the electrical specs, but also the safety codes, environmental ratings, and whatever the customer’s insurance wants. The right solution depends on where it’s going, how it’s being used, and how much abuse it’s going to take over its life.
Common Industrial Markets and Environments
Requirements vary wildly by industry. In oil and gas, you’re looking at IEC 60332-3 Cat. A flame tests and connectors that laugh at hydrocarbons—stainless steel, IP68/IP69K, the works. Solar farms? Go for TUV 2Pfg 1169 certified cables with UV-resistant jackets that’ll last 25 years in the sun. Wind turbines? Torsion-resistant cables that can twist ±180° without giving up.
On the factory floor, you’re fighting oils, coolants, and endless flexing. Robots need cables that can survive millions of cycles and connectors that won’t wear out after a few months. Data centers are a whole other beast—here, low-smoke zero-halogen (LSZH) and fire-rated cables are the standard, and you’ll need to watch VOC emissions if you’re chasing LEED points.
Connectivity Solutions and Customization
Some connector types just never go out of style. D-sub connectors are still everywhere in control cabinets and instrumentation—9 to 50 contacts, and you can get them in high-density formats. If EMI is a concern, go for a metal shell; you’ll get over 60dB shielding, which is nothing to sneeze at.
Circular connectors are the default for tough jobs. M12 and M8 are the bread and butter for IP67-rated sensors and field devices. If you need more juice, M23s can push up to 16A per contact. HARTING and similar brands offer modular designs you can tweak in the field.
For IIoT and edge devices, Single Pair Ethernet (SPE) connectors (T1 industrial) are picking up steam—way lighter than four-pair Ethernet, and you still get up to 1 Gbps over 40 meters. And let’s not forget custom cable assemblies—sometimes you just need a specific length, conductor count, or jacket material. There’s no shame in getting a factory-built solution that fits your machine perfectly.
Strain Relief and Installation Best Practices
You really can’t overstate how important proper strain relief is—without it, cable damage at connection points is almost inevitable, especially where mechanical stress likes to build up. In our field, we usually spec out strain relief boots or cable glands that are rated for the actual loads they’ll see. For most industrial solar installs, you’re looking at a minimum pull force of about 50N. Personally, I prefer metal cable glands when I can get them; they just offer better grip and they help with EMI shielding, which is a constant headache with plastic ones.
When you’re planning out your cable routing, don’t forget the minimum bending radius. If you’re dealing with dynamic applications—think cable carriers or trackers—you’ll want cables that can handle tighter bends, usually under 10x the cable’s outer diameter. For those, multi-stranded conductors (500+ strands of 0.1mm wire) are a lifesaver. They hold up for millions of cycles and don’t stiffen up over time.
Here’s something that gets overlooked: temperature derating. If your ambient temps go above the standard 30°C, your current capacity drops off, roughly 10% for every extra 10°C. It’s critical to double-check that both your connectors and cables are rated for the same max temperature—if you’ve got a 125°C cable but a connector that taps out at 85°C, you’re just asking for thermal failure at the interface. One more thing: always secure your cables every 300-500mm along horizontal runs. If you let them sag, you’re just creating stress points at the terminations, and sooner or later, that’s going to bite you.
